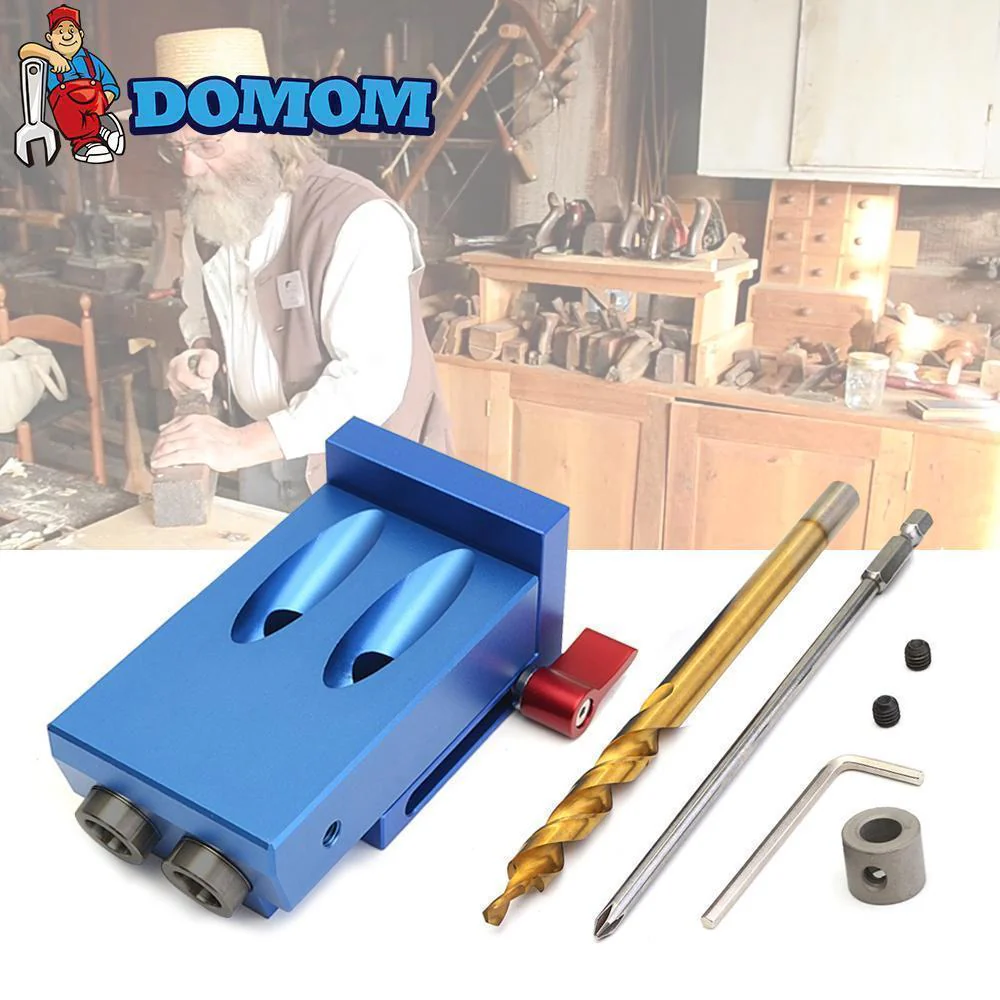

This DOMOM Mini Pocket Hole Jig Kit has a simple structure, strong clamping force, high precision and wide application range, is easy to operate.

Features:

• This pocket jig kit is an amazing and convenient repair jig, easy to adjust, specially designed for oblique hole.
• Easy to use and install, has a long service life.
• Pocket hole jig system is for do-it-yourself.
• Accurate drilling, smooth, does not destroy raw materials.
• Suitable For:Wood Drilling

Specifications:

Material: Aluminum 6061
Surface treatment: anodized
Color: Blue
Black drill bushing: Diameter 9.5MM (steel jacket heat treatment)

Product Size:

Slant-hole device: 90mm x 47mm x 36mm(Length * Width * Height)
9.5mm stepped drill: 58mm (Length)
Stop ring: 13mm (Height)
Phillips screwdriver: 150mm (Length)
Allen wrench: 60mm (Length)
Tool Box: 200mm x 120mm x 80mm (Length * Width * Height)
Scale: Laser engraving (non-screen printing, prolonged use of the mark will not wear)

How to use:

1. Adjust the height of good drill
2. Clamped fight wood
3. Drill holes into touch wood
4. The drill bit then put up five millimeters (remember not to start against the wood drill)
5. Start the drill reaches a certain speed 500-1500
6. Advanced to slow down, and other fine tip drill into the half or full-forward, then feed can accelerate

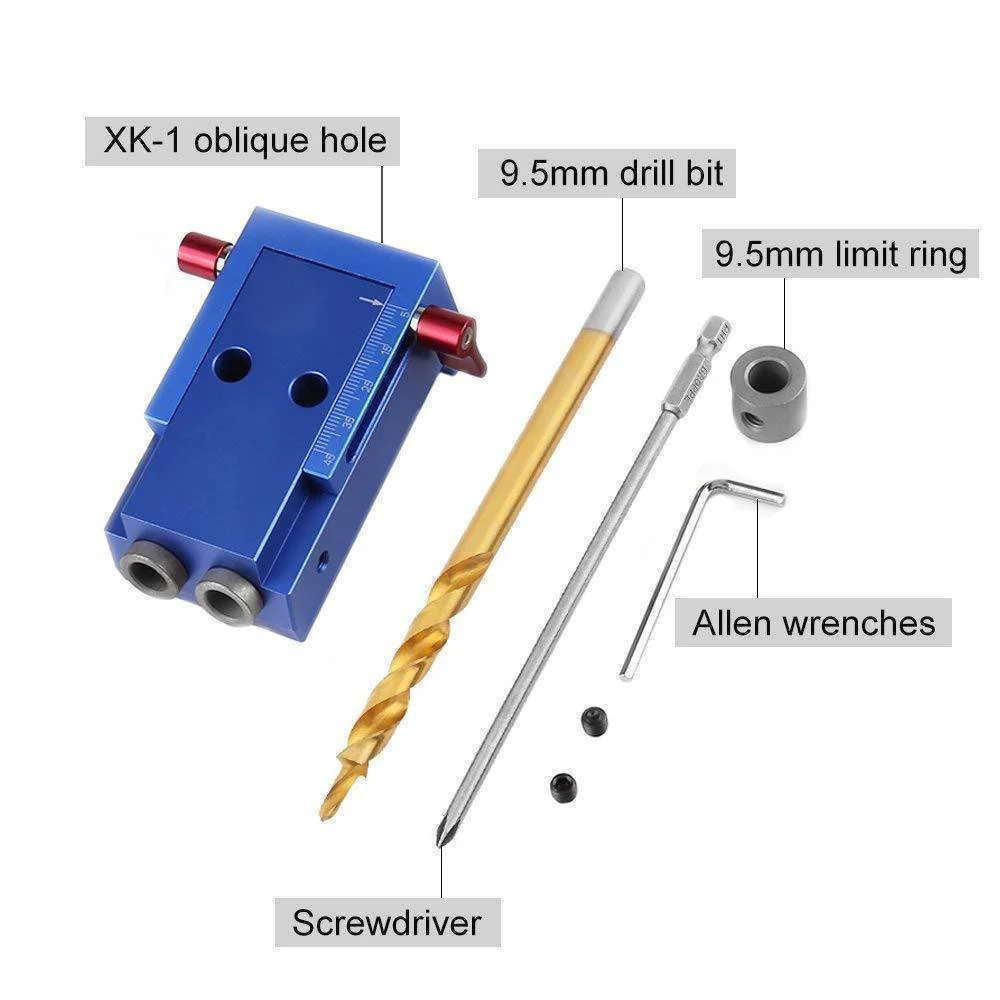

Packing Included:

1 x Slant-hole device
1 x 9.5 mm stepped drill (with limit ring)
1 x Phillips screwdriver
1 x Allen wrench
1 x Hole plugs & screw
